Rev Stack 2007

Replacing link lines on the Rev 1.5 stack of 8 sails

2

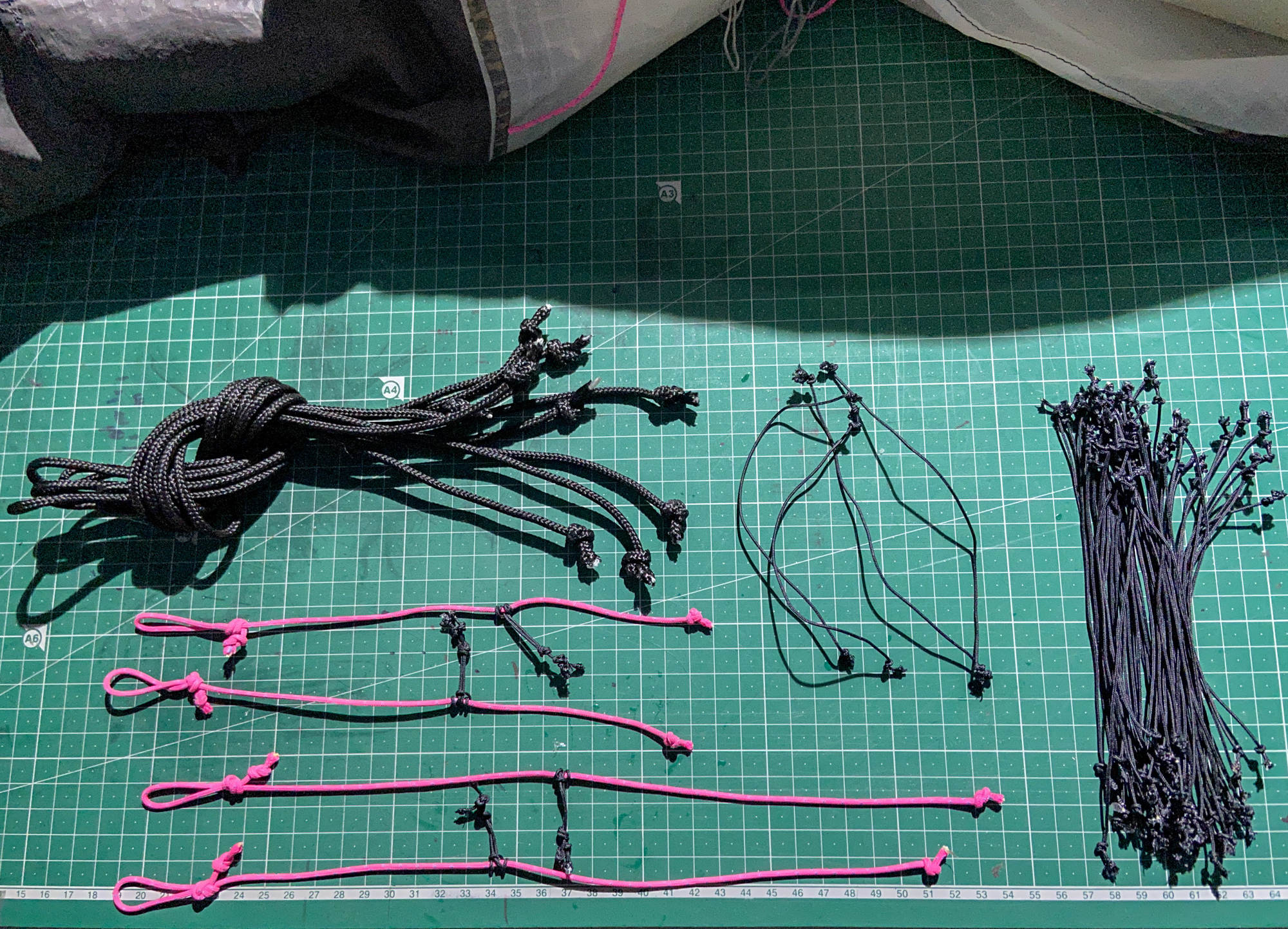

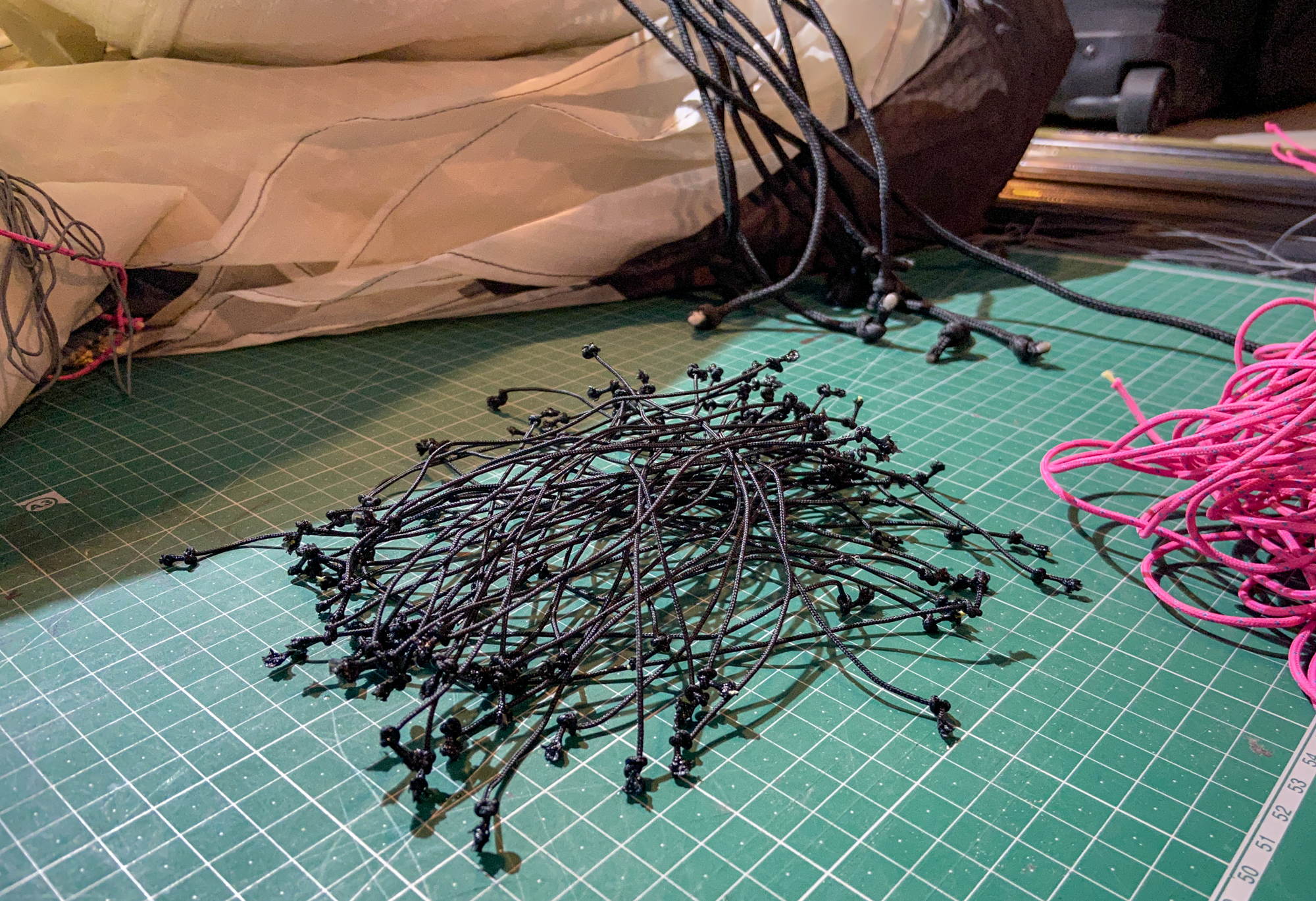

Individual cap links were prepared in sleeved kevlar, knotted and sealed at each end.
4

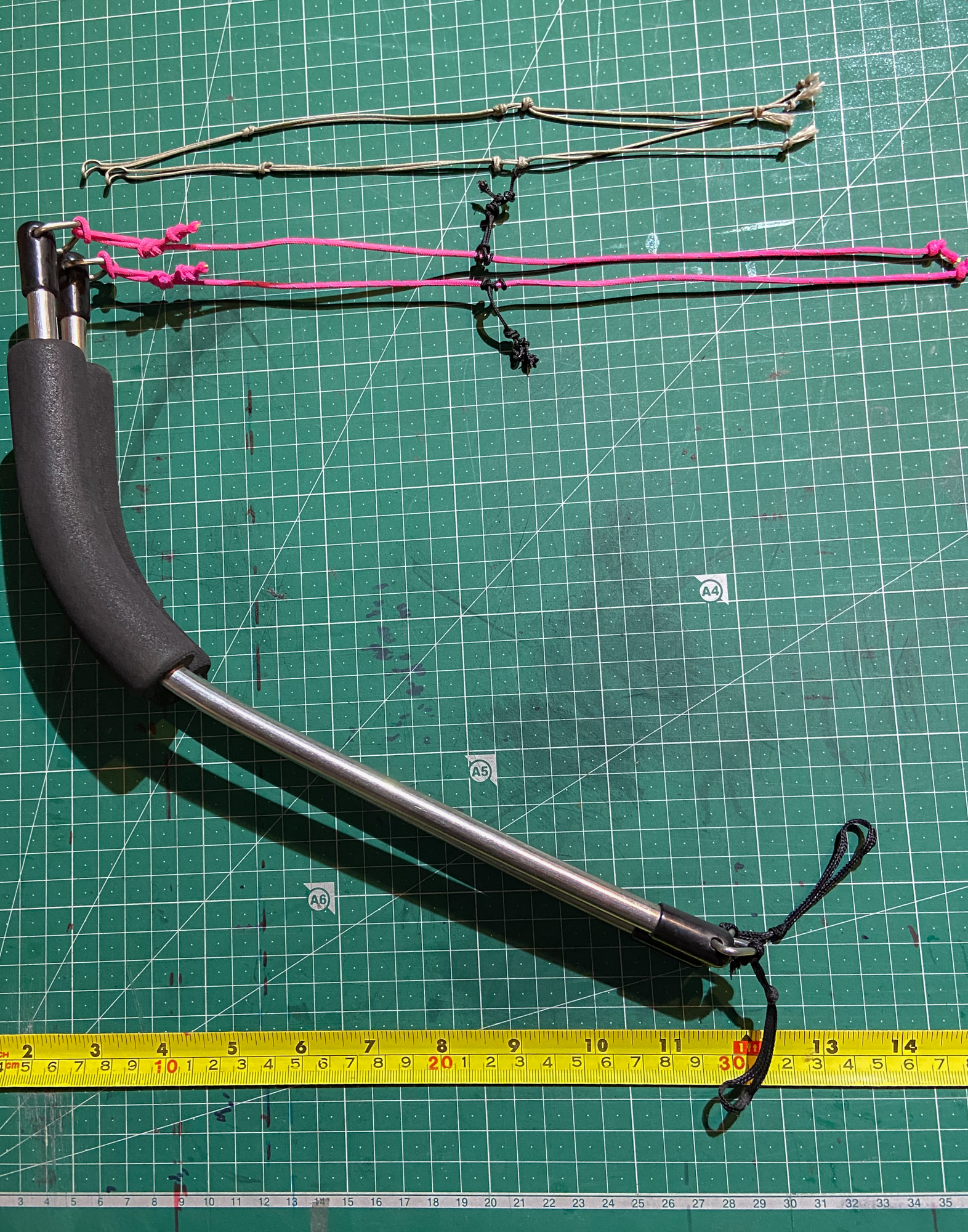

New headers for the stack handles have been prepared using the pink sleeved kevlar with the black sleeved kevlar in the prussic loops.
5

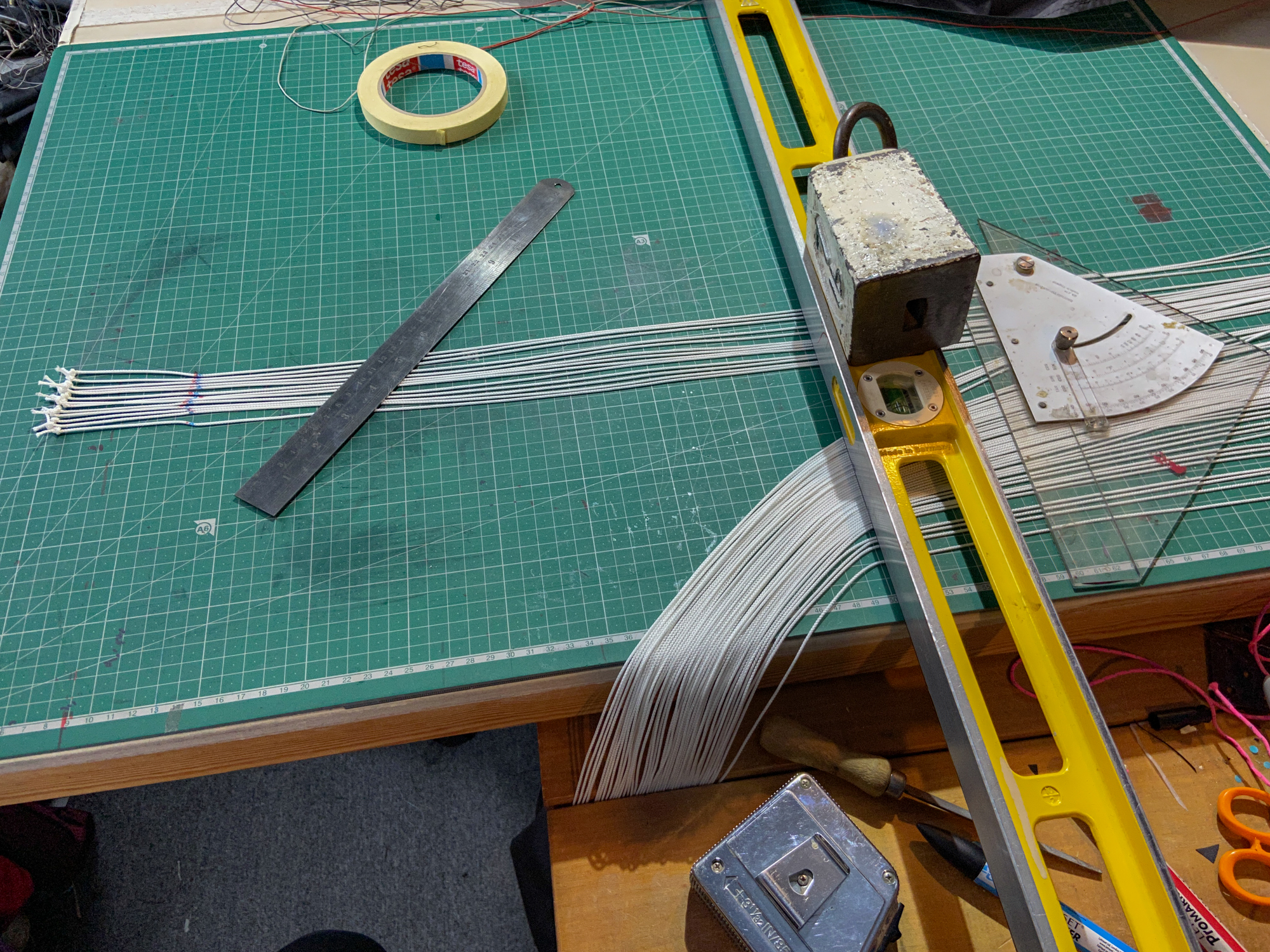

125cm lines cut, ends tied and then marked for for the first end loops.
6
Lines marked for the second end loops.
2

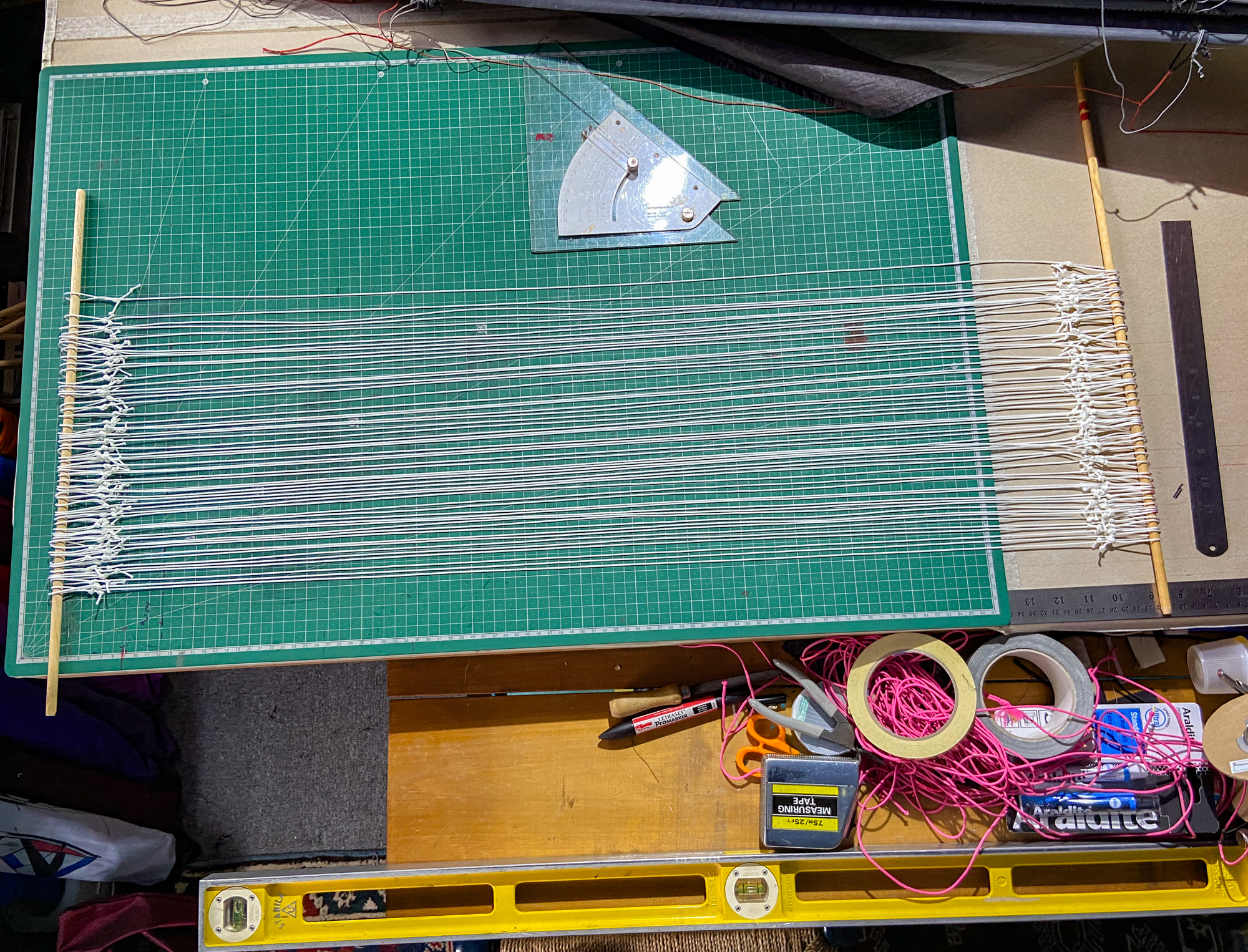

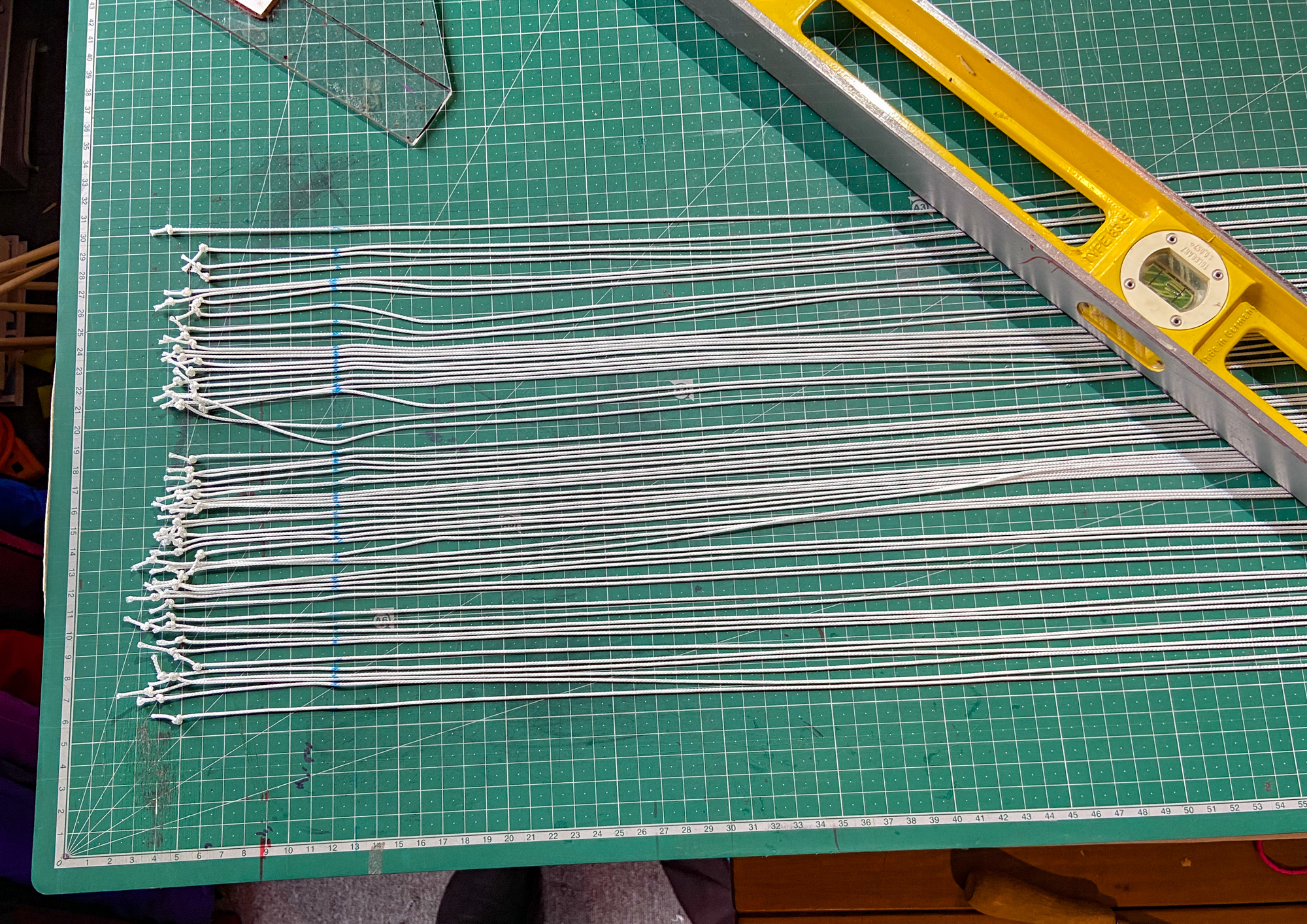

Finished lines assessed for variation.
4

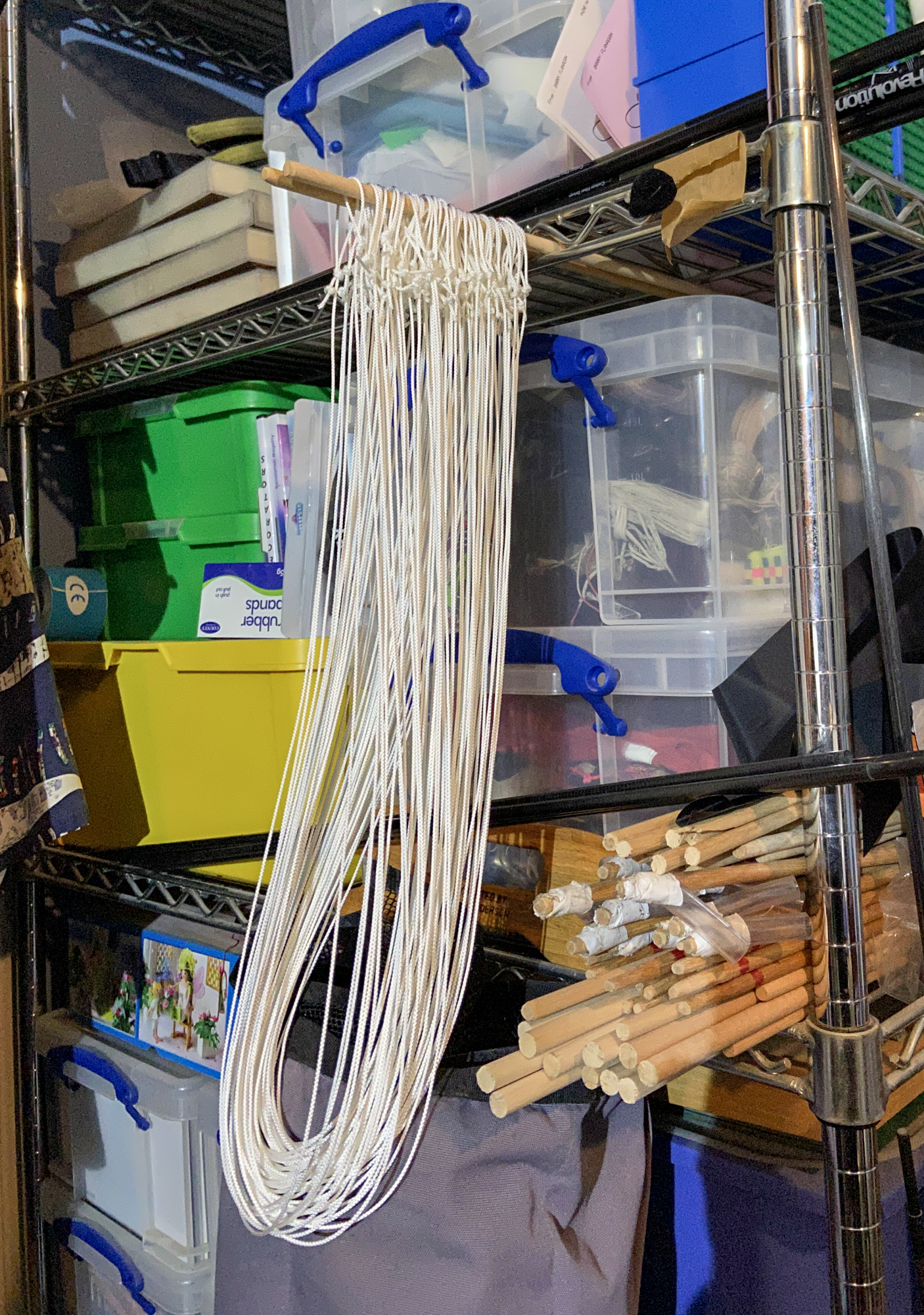

Finished lines ready for setting.
4

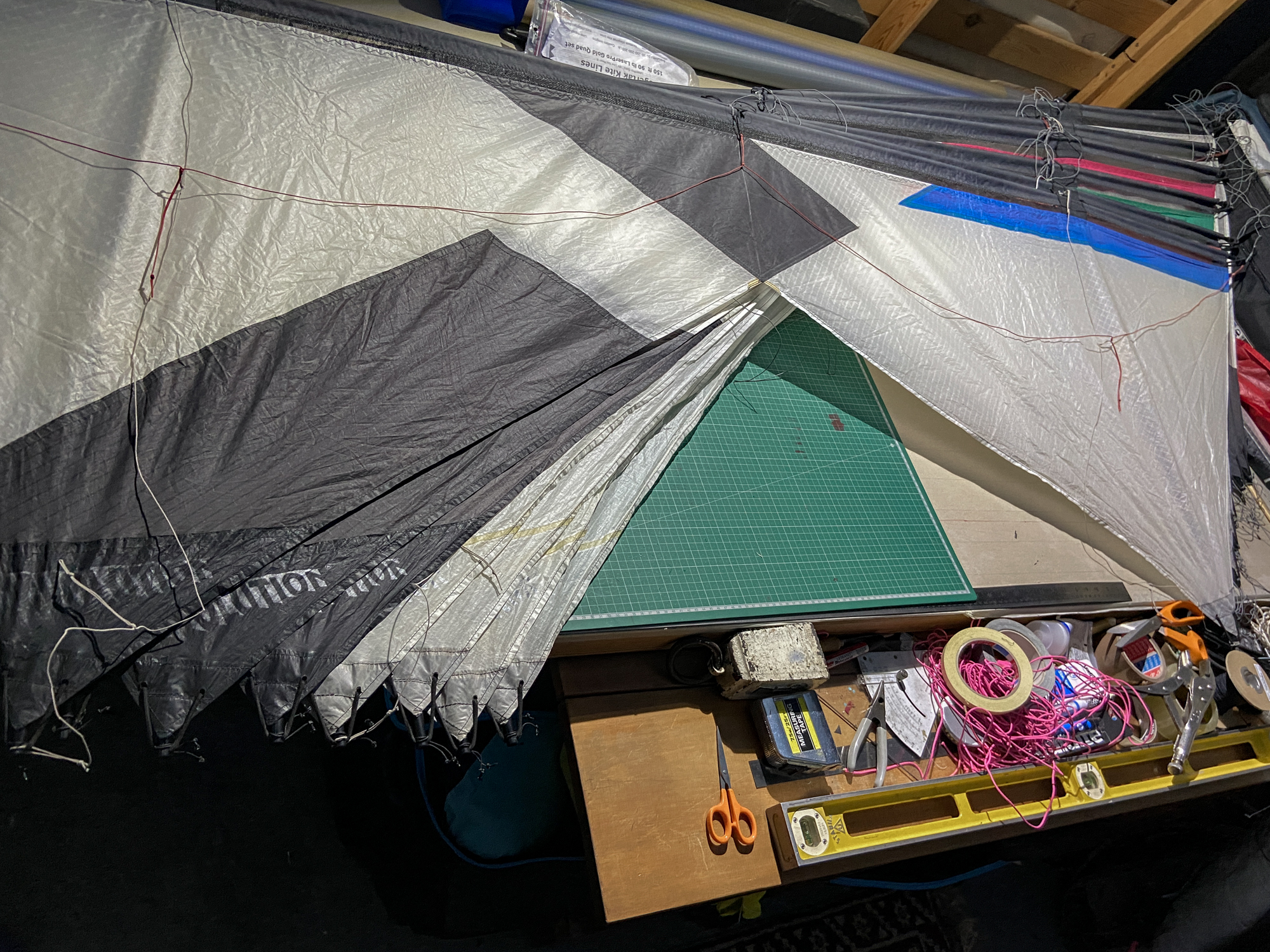

End cap links in place after old link lines have been un-tied.
4

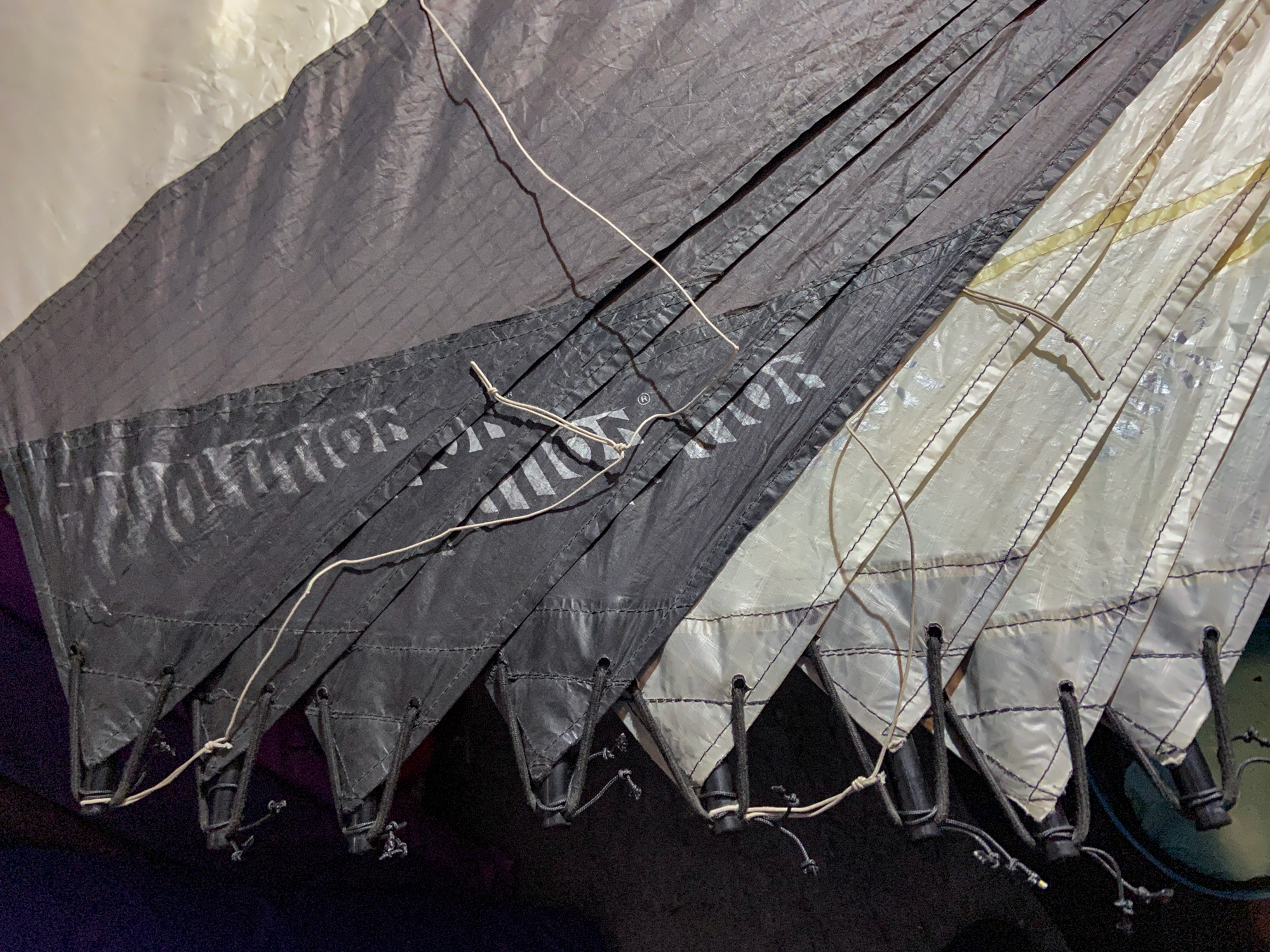

End cap links, overview with old link lines.

Some of the sleeving on the old link lines had worn through which prompted this replacement process.
2
Handles, test set.

Kite Page
4

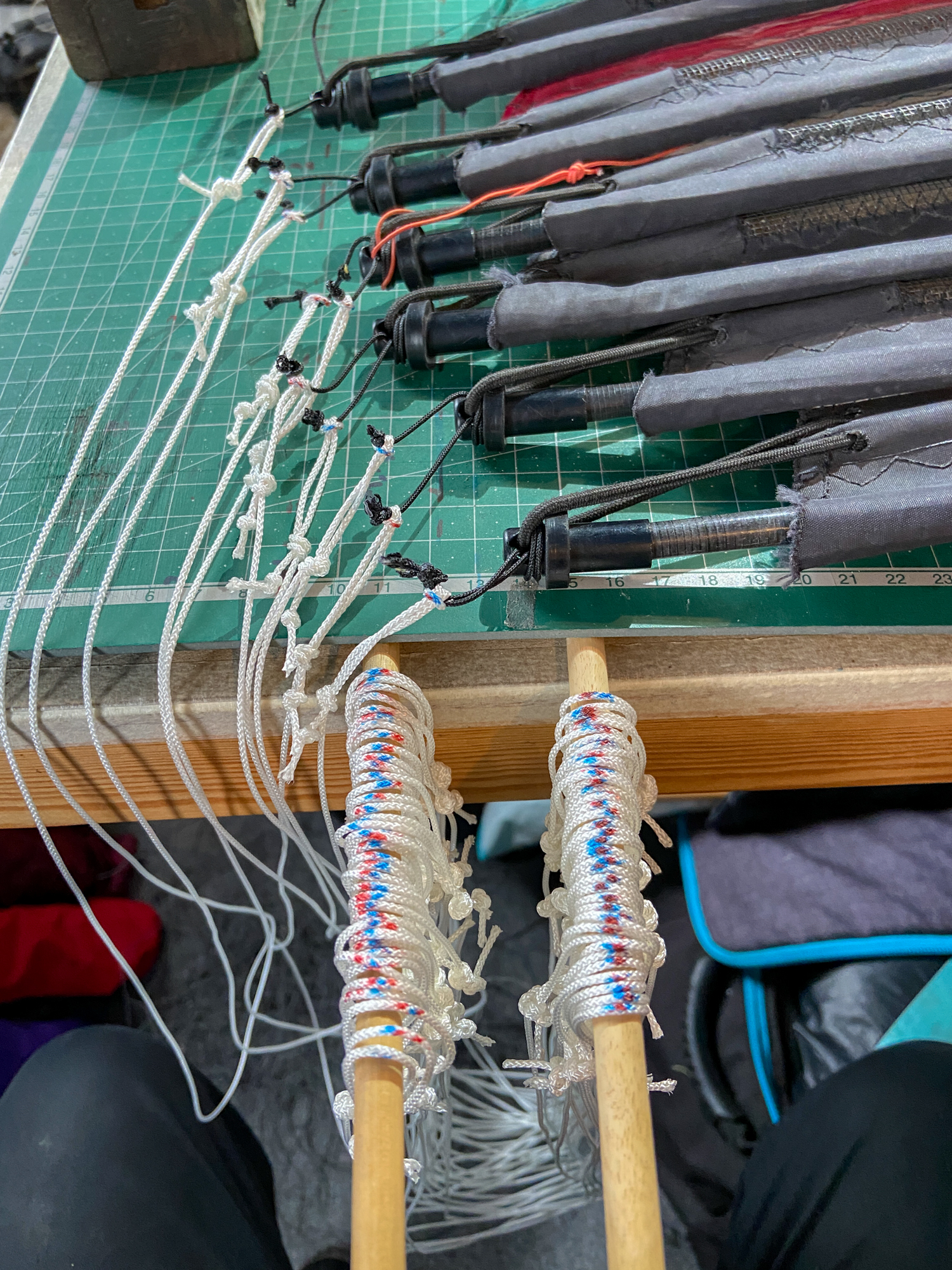

Link lines being attached with attention to cap link line configuration.
4

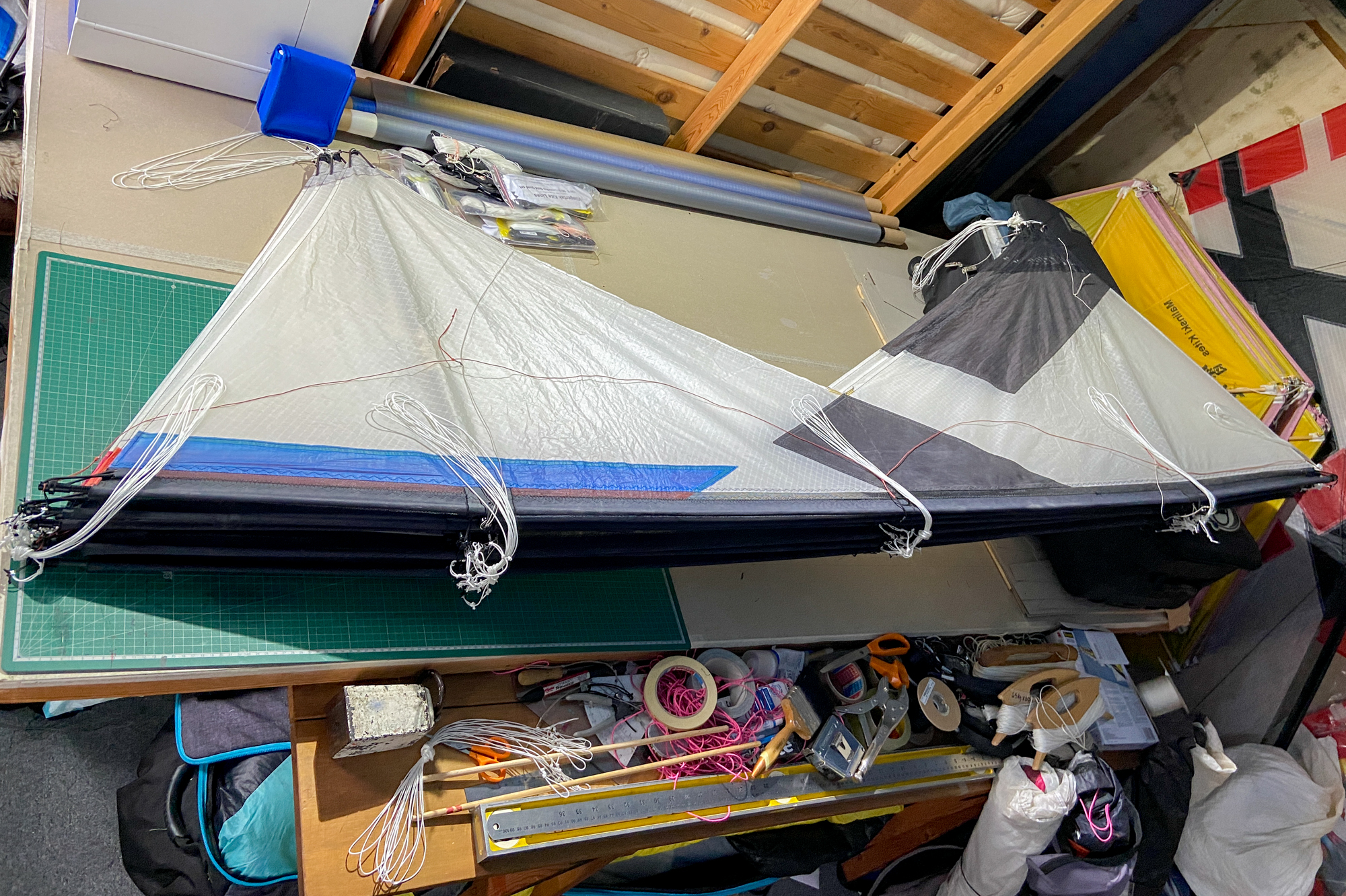

Link lines all set ready for bedding flight as the larks head loops tend to open up in the new braided polyester line.

A new bridle has been installed as the old one was showing signs of wear.
